Kamera IP Dahua IPC-HDBW3649E-AS-IL-0280B DAHUA
The Symbol: 56840
The Availability Of: 7 pcs.
Price: 769.19
Shopping cart is empty
For free delivery are missing -,--
Free delivery!
Order Summary
Sum 0,00 PLN
Price includes discounts
New
pcs.
Have a question? Call us +48 668 460 487
Availability payment and delivery
Shipping within:
24 hours
Price of consignment:
The Lack Of
About the product:
The Weight Of The:
0.75 kg
EAN :
6939554919961
Kamera IP Dahua IPC-HDBW3649E-AS-IL-0280B
Model: IPC-HDBW3649E-AS-IL-0280B
Najważniejsze cechy:
- Przetwornik obrazu CMOS 1/2.7" o rozdzielczości 6 MP - wysoka jakość obrazu przy słabym oświetleniu.
- Maksymalna rozdzielczość: 6 MP (3288 × 1850) przy 25/30 kl./s.
- Kompresja H.265 - wysoka efektywność, bardzo niski bitrate.
- Wbudowane diody IR i światło ciepłe - zasięg do 30 m.
- Obsługa ROI, SMART H.264+/H.265+, AI H.264/H.265 - elastyczne kodowanie dopasowane do warunków sieci i magazynowania.
- Tryb obrotu, WDR, 3D NR, HLC, BLC, znak wodny - uniwersalność w różnych scenariuszach monitoringu.
- Inteligentne funkcje: detekcja wtargnięcia, przekroczenia linii (z rozróżnieniem ludzi i pojazdów), detekcja postoju i krążenia, detekcja twarzy (cały obraz).
- Detekcja anomalii: ruch, sabotaż wideo, zmiana sceny, dźwięk, brak karty SD, pełna/awaria karty SD, brak sieci, konflikt IP, nieautoryzowany dostęp, napięcie.
- Alarm: 1 wejście, 1 wyjście; audio: 1 wejście, 1 wyjście; wbudowany mikrofon; obsługa kart Micro SD do 512 GB.
- Zasilanie: 12 VDC lub PoE.
- Odporność: IP67 (wodoodporność) i IK10 (odporność na uderzenia).
- Technologia SMD 4.0.
- Obsługa AI SSA.
- Możliwość definiowania stref SMD w obszarze światła ciepłego z funkcją wyzwalania alarmu.
Specyfikacja techniczna:
Przetwornik obrazu: 1/2.7" CMOS
Maks. rozdzielczość: 3288 (H) × 1850 (V)
ROM: 256 MB
RAM: 1 GB
System skanowania: Progresywny
Elektroniczna migawka: Auto/Ręczna 1/3 s-1/100 000 s
Minimalne oświetlenie: 0.005 [email protected] (Kolor), 0.0005 [email protected] (B/W), 0 lux (IR włączony)
Stosunek sygnału do szumu: >56 dB
Zasięg oświetlenia: Do 30 m (IR), do 30 m (światło ciepłe)
Sterowanie oświetleniem: Auto; Ręczne
Liczba oświetlaczy: 3 (IR LED); 4 (światło ciepłe)
Regulacja kąta: Pan: 0°-355°, Tilt: 0°-75°, Obrót: 0°-355°
Typ obiektywu: Stałoogniskowy
Mocowanie obiektywu: M12
Ogniskowa: 2.8 mm; 3.6 mm
Przysłona: F1.4
Pole widzenia:
- 2.8 mm: H:110°, V:58°, D:132°
- 3.6 mm: H:86°, V:49°, D:100°
Regulacja przesłony: Stała
Minimalna odległość ostrzenia:
- 2.8 mm: 1.4 m
- 3.6 mm: 1.9 m
DORI:
- 2.8 mm: Detekcja: 84.8 m, Obserwacja: 33.9 m, Rozpoznanie: 17 m, Identyfikacja: 8.5 m
- 3.6 mm: Detekcja: 98.7 m, Obserwacja: 39.5 m, Rozpoznanie: 19.7 m, Identyfikacja: 9.9 m
IVS (ochrona obwodowa): Wtargnięcie, przekroczenie linii, postój, krążenie - z rozpoznawaniem ludzi i pojazdów
SMD: SMD 4.0
AcuPick: Inteligentne przeszukiwanie nagrań dzięki analizie obrazu - szybkie lokalizowanie osób i pojazdów
AI SSA: Automatyczne dopasowanie parametrów obrazu do warunków - deszcz, mgła, światło, mrok
Detekcja twarzy: Wykrywanie twarzy, zdjęcia, poprawa jakości, filtry kątów, strategie zapisu
Inteligentne wyszukiwanie: Współpraca z NVR - dokładne wyszukiwanie i analiza zdarzeń
Kompresja wideo: H.265, H.264, MJPEG (strumień pomocniczy)
Kodowanie AI: AI H.265, AI H.264, SmartCodec
Liczba strumieni: 3
Obsługiwane rozdzielczości: 6M, 5M, 4M, 3M, 1080p, 720p, D1, VGA, CIF
Kontrola bitratu: VBR, CBR, ABR
Bitrate: H.264/H.265: 3 kbps-16384 kbps
Tryb Dzień/Noc: Auto(ICR)/Kolor/Czarno-biały
BLC/HLC/WDR: Tak / Tak / 120 dB
SSA: Tak
Balans bieli: Auto, naturalne, lampy, zewnętrzne, ręczne
Wzmocnienie: Auto/Ręczne
Redukcja szumów: 3D NR
Detekcja ruchu: TAK (4 strefy)
ROI (Region of Interest): TAK (4 strefy)
Inteligentne oświetlenie: TAK
Smart Dual Light: TAK
Defog (odmgławianie): TAK
Obrót obrazu: 0°/90°/180°/270°
Lustro: TAK
Maski prywatności: 8 stref
LDC (korekcja dystorsji): TAK
Wbudowany mikrofon: TAK
Kompresja audio: PCM; G.711a; G.711Mu; G.726; G.723
Zdarzenia alarmowe: Ruch, sabotaż, brak karty, pełna karta, wtargnięcie, twarz, dźwięk, zmiana sceny itd.
Port sieciowy: RJ-45 (10/100 Base-T)
Protokoły sieciowe: IPv4/IPv6, HTTP, TCP, UDP, FTP, DHCP, ONVIF itd.
Zgodność: ONVIF, CGI
Użytkownicy: 20 (łączna przepustowość: 64 Mbps)
Magazyn danych: FTP, SFTP, Micro SD (do 512 GB), NAS
Przeglądarki: IE11, Chrome, Firefox
Oprogramowanie: Smart PSS Lite, DSS, DMSS, DoLynk Care
Aplikacja mobilna: iOS, Android
Zabezpieczenia: HTTPS, 802.1x, certyfikaty, filtrowanie IP/MAC, syslog
Certyfikaty: CE-LVD, CE-EMC
Wejście audio: 1 kanał (RCA)
Wyjście audio: 1 kanał (RCA)
Wejście alarmowe: 1 kanał (5 mA 3-5 VDC)
Wyjście alarmowe: 1 kanał (300 mA 12 VDC)
Zasilanie: 12 VDC / PoE (802.3af)
Zasilanie awaryjne: Automatyczne przełączenie bez restartu
Pobór mocy:
- Podstawowy: 3.7 W (DC), 4.6 W (PoE)
- Maksymalny: 6.4 W (DC), 7.5 W (PoE)
Temperatura pracy: -40 °C do +60 °C
Wilgotność pracy: ≤95% (bez kondensacji)
Temperatura przechowywania: -40 °C do +60 °C
Wilgotność przechowywania: ≤95% (bez kondensacji)
Odporność: IP67; IK10
Obudowa: Metalowa

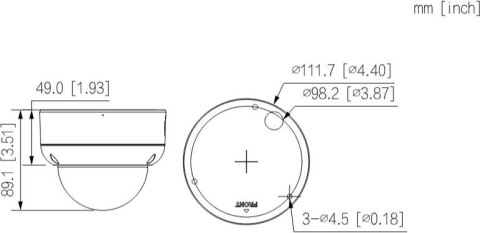

Wymiary: 89.1 mm × Φ111.7 mm
Waga netto/brutto: 528 g / 690 g
