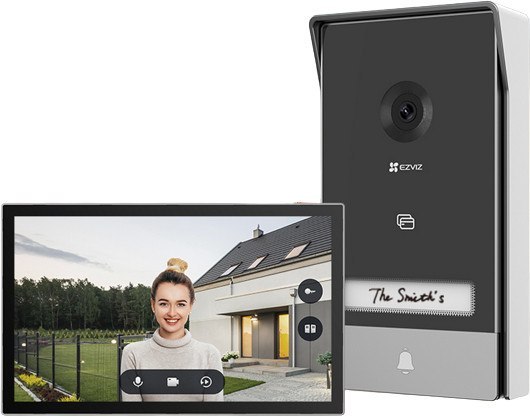

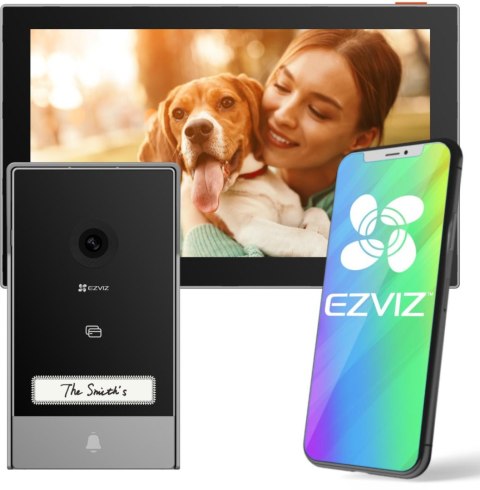

EZVIZ HP7 Video Intercom Set
Model: CS-HP7-R100-1W2TFC
Key Features
- 2K resolution
- 7" Color Touch Screen
- Remote Gate/ Door Opening
- Intelligent Human Silhouette Detection
- 2-Wire Connection
- Two-way Conversation (voice change option)
- Built-in doorbell with melody selection
- Smart Opening with RFID Proximity Reader (3 key fobs included)
- Waterproof Housing
- Name Card included
- Dual-band Wi-Fi (2.4 and 5 GHz)
- Supports MicroSD cards (up to 512 GB)
- Expandable up to 10 SD7 monitors
Technical Specification
| Gate Station | |
| Image Sensor | 1/2.7" Progressive CMOS (supports low-light sensitivity) |

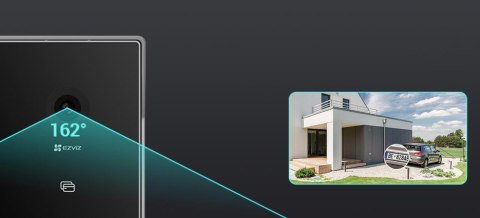

| Lens | 2.0 mm @ F2.2, viewing angle: 162° (diagonal) |
| Day/Night Mode | infrared filter with automatic switching, infrared light 850 nm × 2 (max. 6 m) |
| Max Resolution | 2048 × 1296 |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Refresh Rate | Max. 15 frames per second; auto-adaptation during network transmission |
| Connectivity and Features | |
| Connection Method | Wired connection (2-wire, possible with 4-wire), digital signal transmission |
| Transmission Distance | Φ 2 x 0.75mm², max. 50m Φ 2 x 1.5mm², max. 100m Twisted pair, max. 120m |
| Gate Opening | Supports 2 cable ports, distance 1-10 m. The intercom panel provides a dry contact connection without electrical power, to connect to an automatic gate button, capable of switching off: 12V / 2A |
| Unlocking (Electric Strike) | Supports 2 cable ports, distance 1-10 m. The ordered electric strike or lock must have mechanical memory; the power supply for the electric strike or lock must not exceed 12V / 1.1A, otherwise, follow the User Manual. |
| Door Opening | 1. Using RFID reader (3 key fobs included) 2. Remote unlocking via app 3. Using the internal screen |
| External Intercom Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Intercom Button | Has an intercom button. Option to enable and disable backlighting. |
| Name Plate | Includes 3 name cards (one is on the intercom panel). Option to enable and disable backlighting. |
| Inputs and Outputs | Two ports for connecting the screen. Two ports for controlling the gate. Two ports for connecting the electric strike. |
| Functions | |
| Smart Alarm | Smart human motion detection, constant detection |
| Anti-theft Alarm | Supports |
| Video Intercom | Two-way video conversation at a distance |
| General Specifications | |
| Operating Conditions | temperature from -30°C to 60°C, humidity up to 95% (non-condensing) |
| IP Protection Degree | waterproof, with covers |
| Dimensions | 161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inches). |
| Internal Screen | |
| Display Size | 7-inch touch screen |
| Resolution | 1024 × 600 |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Button | Screen on/off button |
| Inputs and Outputs | Two ports for connecting the first external video intercom Two ports for connecting the second external video intercom Two ports for connecting an additional internal screen (additional screen not included). |
| Memory | Supports microSD cards up to 512 GB Supports EZVIZ CloudPlay registration |
| Network Parameters | |
| Protocol | Patented EZVIZ Cloud service protocol |
| Interface Protocol | Patented EZVIZ Cloud service protocol |
| Protocol | EZVIZ Connect Protocol |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Speed | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Functions | |
| Selectable Ringtones | Up to 20 ringtones. |
| Functions | Live preview, playback, two-way conversation, video conversation |
| General Information | |
| Operating Conditions | temperature from -30°C to 60°C, humidity up to 95% (non-condensing) |
| Weight | Net weight: 855 g (30.16 oz) Weight with packaging: 1825 g (64.37 oz) |
| Size | 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inches) |
| Power Source | DC 24V / 1.5A power supply, adapter (100-240Vac) |
| Power Consumption | 8W, max. 24W |
| Package Contents | |
| Package Contents | 1. Screen |
| 2. Wall mount for the screen | |
| 3. Power supply for the screen | |
| 4. Drilling template for screen installation | |
| 5. Intercom panel | |
| 6. Drilling template for intercom installation | |
| 7. Screwdriver | |
| 8. Key fob/proximity card (x3) | |
| 9. Screw set (x2) | |
| 10. Name cards (x2) | |
| 11. Wires and connectors | |
| 12. Legal Information (x2) | |
| 13. User Manual |
