Set for 5 IP cameras switch PoE 5P+1UP ATTE IP-5-11-L3 ATTE
The Symbol: 21309
The Availability Of: 9 pcs.
Price: 551.16
Shopping cart is empty
For free delivery are missing -,--
Free delivery!
Order Summary
Sum 0,00 PLN
Price includes discounts
Promotion
pcs.
Have a question? Call us +48 668 460 487
Availability payment and delivery
Order within
and we will send the package today
Shipping within:
Right away
Price of consignment:
The Lack Of
About the product:
The Weight Of The:
0.95 kg
EAN :
5902143690269
Set for 5 IP cameras PoE switch 5P+1UP ATTE IP-5-11-L3
Model: IP-5-11-L3
Key Features and Functions:
- capable of powering 5 PoE 802.3at/af or PASSIVE receivers
- data transmission capability up to 280m (in Long Range mode)
- electronic fuse independently for each PoE channel (auto reset)
- ability to turn off power on selected PoE ports
- clear optical indication of power status and data transmission
- up to 60W power on LAN_5 PoE IN/OUT port
- up to 40W power on other PoE ports
- easy and quick startup without the need for parameter configuration, high efficiency of the power module (>90%)

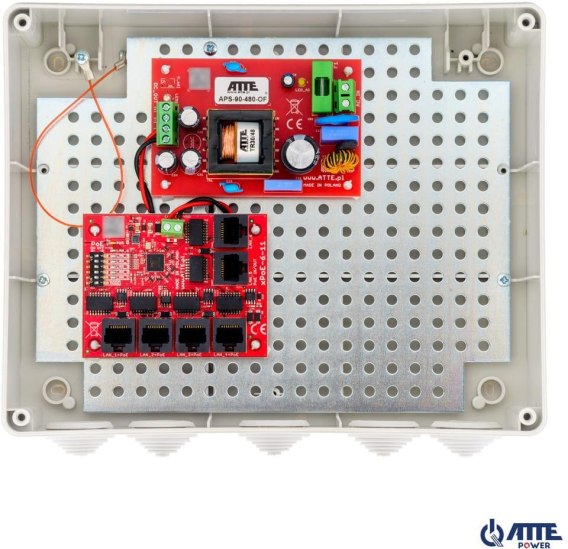

- easy and quick service of the installation due to modular construction
- easy expansion and scaling of the system by adding additional switches from the xPoE / IP series and IPB / IPUPS
- mounting of modules in any open part of the mounting plate (grid system)
- cover and housing connected with a cord for easier service
- ability to keep cable reserve inside the housing

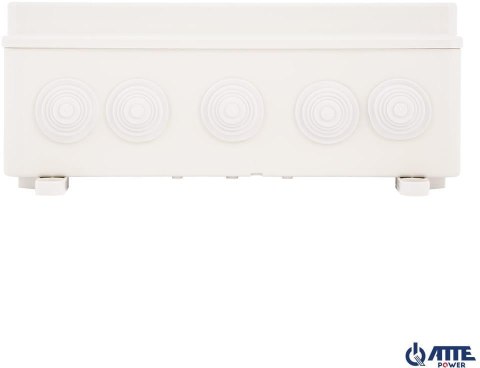

- cable entry through rubber plugs mounted in the housing: 5x29mm
- ability to introduce wires with pre-terminated connectors (after cutting the plug)

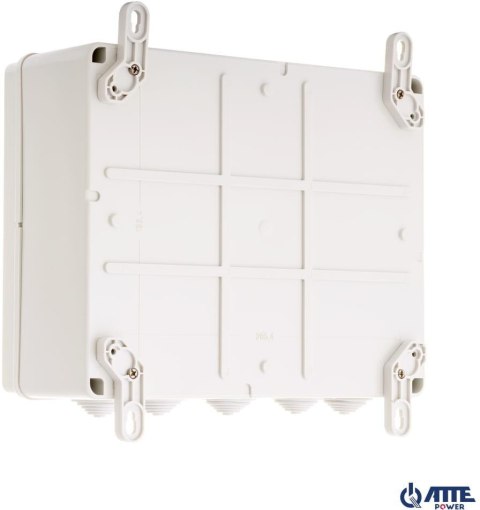

- includes 4 brackets for mounting the housing without compromising the IP55 protection level
- optional ADD-PMAL adapter allows easy mounting of the housing on poles or lamps (sold separately)
Purpose
IP-5-11-L3 is a ready-made set designed to power an IP CCTV system consisting of 5 IP cameras. The electronic protections of the PoE outputs ensure the continuity of the entire system's operation in case of short circuits or overloads of individual power branches, as well as automatic voltage recovery after the failure has cleared. Sets with PoE switches are intended to work with IP cameras and other network devices powered by the PoE 802.3at/af and PoE PASSIVE standards.
The "Long Range" mode allows for increased transmission range up to 280m using standard UTP computer twisted pair. The switch operates in two modes: standard and extended range. When the Long Range switch is in the OFF position, all ports operate at 100 Mbps and offer Ethernet network range up to 100 meters. When the dip switch is switched to the ON position, the range is increased to 280 meters, and the speed on ports 1 to 4 is reduced to 10 Mbps. This bandwidth is sufficient to efficiently handle one camera. In both modes, the speed of UpLink ports 5 and 6 is 100 Mbps.
By enabling the LongRange mode, we provide greater flexibility in camera placement. Increasing the distance from the switch allows for easier coverage of a large area without the need to build additional distribution points.
Technical Specification
| LAN Ports | 6 RJ45 10/100Mbps ports (5xLAN+PoE, 1xUplink) |
| Supported PoE receivers (standard / max power) | 802.3af - up to 15.4W LAN_1...LAN_5 802.3at - up to 30W LAN_1...LAN_5 PoE PASSIVE - up to 70W LAN_5 / up to 40W LAN_1...LAN_4 |
| PoE outputs (standard / power mode) | LAN_1...LAN_5 PoE PASSIVE, mode B (4,5+) (7,8-) |
| PoE output protection (overcurrent / short circuit) | LAN_1...LAN_40,75A / electronic (auto-reset) LAN_51,25A / electronic (auto-reset) |
| Micro switches SW1 | switch 1 "MODE" - switch operation mode switches 2...6 "PoE ON/OFF" - PoE power on LAN_1...LAN_5 ports |
| Standard operation mode | switch 1 "MODE" in OFF position LAN_1...LAN_6 - range up to 100m (10/100Mbps) |
| Long Range operation mode | switch 1 "MODE" in ON position LAN_1...LAN_4 - range up to 280m (10Mbps) LAN_5...LAN_6 - range up to 100m (10/100Mbps) |
| Power supply (type / model) | impulse SMPS / ABOX-90-480-OF |
| Power supply output protection (overcurrent / short circuit) | 9A, electronic (after a short circuit, a restart of the power supply may be required) |
| Thermal protection of the power supply | TSD (thermal shutdown) 130°C, requires restart |
| Input voltage range of the power supply / input protection | 180...240VAC / T3,15A fuse |
| Output power of the power supply (continuous) | 96W |
| Efficiency of the power supply | 92% @90W |
| Output voltage of the power supply (for PoE cameras) | 48V +/-2% |
| Housing mounting | wall-mounted, mounting brackets |
| Mounting devices inside the housing | system holes 4.8mm in a grid of 10.8mm |
| Operating temperature range | -25°C...+40°C |

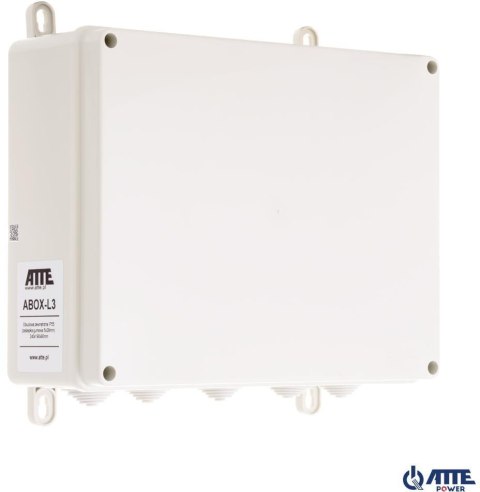

| Housing (type / material / color / cable entries) | ABOX-L3 / plastic / RAL7035 gray / rubber plug 5x29mm |
| Dimensions / net weight / protection class | 240x190x90mm / 0.95kg / IP55 |
