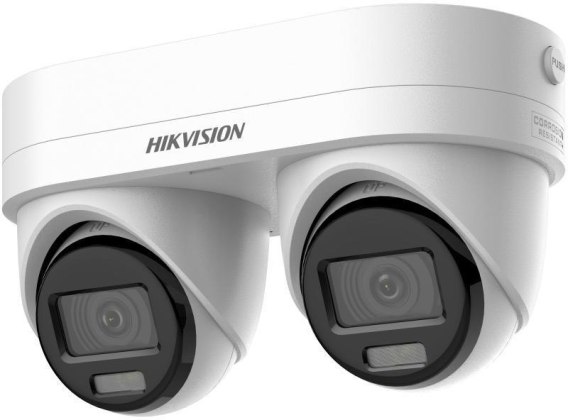

Hikvision DS-2CD2346G3D-IZ2UY/SL(2.8/4mm) IP Camera HIKVISION
The Symbol: 63389
The Availability Of: 6 pcs.
Price: 1554.60
Shopping cart is empty
For free delivery are missing -,--
Free delivery!
Order Summary
Sum 0,00 PLN
Price includes discounts
Sale
pcs.
Have a question? Call us +48 668 460 487
Availability payment and delivery
Order within
and we will send the package today
Shipping within:
Right away
About the product:
The Weight Of The:
1.72 kg
EAN :
6936422160272
Hikvision DS-2CD2346G3D-IZ2UY/SL(2.8/4mm) IP Camera
Model: DS-2CD2346G3D-IZ2UY/SL(2.8/4mm)
Technical Specification
| Model | DS-2CD2346G3D-IZ2UY/SL(2.8/4mm) |
| Brand | Hikvision |
| Image Sensor | Channel 1: 1/3" CMOS with progressive scan; Channel 2: 1/3" Progressive Scan CMOS |
| Max Resolution | Channel 1: 2688 × 1520; Channel 2: 2688 × 1520 |
| Min Illumination | Channel 1: Color: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR; Channel 2: Color: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day/Night Mode | Channel 1: IR Cut Filter; Channel 2: IR Cut Filter |
| Camera Positioning | Channel 1: Rotation 0°-360°, Tilt 0°-75°, Rotation 0°-360°; Channel 2: Rotation 0°-360°, Tilt 0°-75°, Rotation 0°-360° |
| Lens Type | Channel 1: Varifocal, motorized, 2.8 mm and 4 mm; Channel 2: Varifocal, motorized, 2.8 mm and 4 mm |
| Focal Length and Field of View | Channel 1: 2.8 mm (H 99.3°, V 52.9°, D 120.2°); 4 mm (H 80.0°, V 44.1°, D 94.0°); Channel 2: 2.8 mm (H 99.3°, V 52.9°, D 120.2°); 4 mm (H 80.0°, V 44.1°, D 94.0°) |
| Lens Mount | Ø14 |
| Aperture Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.2 m to ∞; 4 mm: 1.5 m to ∞ |
| DORI | Channel 1: 2.8 mm (D 66.6 m, O 26.4 m, R 13.3 m, I 6.7 m); 4 mm (D 79.2 m, O 31.4 m, R 15.8 m, I 7.9 m); Channel 2: 2.8 mm (D 66.6 m, O 26.4 m, R 13.3 m, I 6.7 m); 4 mm (D 79.2 m, O 31.4 m, R 15.8 m, I 7.9 m) |
| Supplementary Light | IR |
| Supplementary Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | Channel 1 and 2: 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720); 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Sub Stream | Channel 1 and 2: 50 Hz: 25 fps (768×432, 640×360); 60 Hz: 30 fps (768×432, 640×360) |
| Third Stream | Channel 1 and 2: 50 Hz: 1 fps (1920×1080, 1280×720, 640×480, 640×360); 60 Hz: 1 fps (1920×1080, 1280×720, 640×480, 640×360) *Supported in some settings |
| Video Compression | Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 *Third stream supported in some settings |
| Video Bitrate | 32 Kb/s to 16 Mb/s |
| H.264 Profile | Baseline / Main / High |
| H.265 Profile | Main |
| SVC | H.264 and H.265 |
| Bitrate Control | CBR/VBR |
| ROI | 1 fixed region for main stream, sub stream, and third |
| Target Cropping | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kb/s (G.711ulaw/alaw); 16 Kb/s (G.722.1); 16 Kb/s (G.726); 32-192 Kb/s (MP2L2); 8-320 Kb/s (MP3); 16-64 Kb/s (AAC-LC) |
| Audio Sampling Frequency | 8/16/32/48 kHz |
| Environmental Noise Filtering | Yes |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live Preview | Up to 6 channels |
| API | ONVIF (Profile S/G), ISAPI, SDK, ISUP |
| Users/Hosts | Up to 32 users; roles: administrator, operator, user |
| Security | Password protection, complex password, HTTPS, IP filter, audit log, basic digest authentication HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE/digest for ONVIF |
| Clients | iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage | NAS (NFS, SMB/CIFS), ANR; memory card encryption and state detection (with Hikvision card) |
| Web Browser | Plugin-free preview: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; Local services: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
| Image Parameter Switching | Yes |
| Day/Night Switch | Day / Night / Auto / Schedule |
| Image Settings | Rotation mode |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image Quality Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable polygonal masks |
| Ethernet Interface | 1 × RJ‑45 10/100M, self-adaptive |
| Memory Card Slot | microSD/microSDHC/microSDXC up to 512 GB |
| Reset | Yes |
| Built-in Speaker | 1, max 1.5 W, SPL @10 cm: 110 dB |
| Audio - Microphone | Built-in dual matrix microphone |
| Basic Events | Motion detection (distinguishing human/vehicle), image tampering, exception |
| Event Links | FTP/NAS/memory card, center notification, email, recording/capture trigger, sound alarm, strobe flashing |
| Perimeter Protection | Line crossing, intruder, entry/exit from region; alarm types: human/vehicle |
| Power Supply | 12 VDC ±25% (1.42 A, max 17 W, terminal block, reverse polarity protection); PoE: IEEE 802.3at class 4, max 18 W |
| Material | Metal |

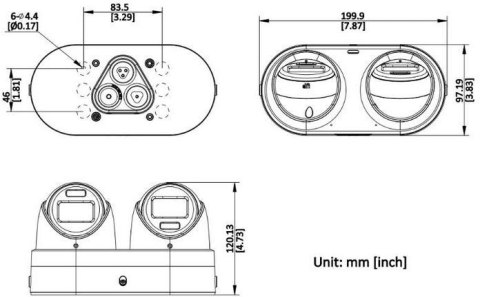

| Dimensions | 199.9 × 120.1 × 97.2 mm (7.9" × 4.7" × 3.8") |
| Packaging Dimensions | 305 × 162 × 165 mm (12.0" × 6.4" × 6.5") |
| Weight | Approximately 1200 g (2.6 lb) |
| Weight with Packaging | Approximately 1567 g (3.5 lb) |
| Storage Conditions | -30 °C to 60 °C; RH ≤95% (no condensation) |
| Operating/Starting Conditions | -30 °C to 60 °C; RH ≤95% (no condensation) |
| Languages | 33 languages (including PL, EN, DE, FR, ES, IT, RU, UA) |
| General Functions | Heartbeat, mirror, flash log, reset password email, pixel counter, anti-banding |
| Flashing Light | SRB: red/blue; SL: white light |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; IC: ICES-003 Ed.7; KC: KN32:2015, KN35:2015 |
| Safety | CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; REACH: (EU) 1907/2006; NEMA 4X (NEMA 250-2018) |
| Protection | IP67 (IEC 60529-2013) |
